⊙material：copper
⊙content：Copper above 99.9%
⊙plating：Tin

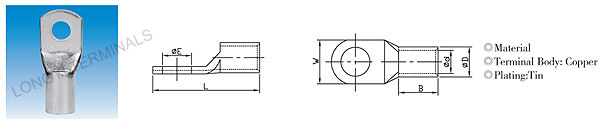

| PART NO 2015-2018 |
ITEM NO | DIMENSIONS | |||||
| φE | ΦD | Φd | W | B | L | ||
| LY0002-5001 | SC-XB1.5-4 | 4.3 | 4.0 | 2.2 | 8.0 | 5.0 | 16.5 |
| LY0002-5002 | SC-XB1.5-5 | 5.3 | 4.0 | 2.2 | 8.0 | 5.0 | 16.5 |
| LY0002-5003 | SC-XB2.5-4 | 4.3 | 4.5 | 2.9 | 8.0 | 7.0 | 19.0 |
| LY0002-5004 | SC-XB2.5-5 | 5.3 | 4.5 | 2.9 | 8.0 | 7.0 | 21.0 |
| LY0002-5005 | SC-XB2.5-6 | 6.4 | 4.5 | 2.9 | 10.0 | 7.0 | 21.0 |
| LY0002-5006 | SC-XB2.5-8 | 8.4 | 4.5 | 2.9 | 13.0 | 7.0 | 23.0 |
| LY0002-5007 | SC-XB4-4 | 4.3 | 5.2 | 3.6 | 10.0 | 7.0 | 21.0 |
| LY0002-5008 | SC-XB4-5 | 5.3 | 5.2 | 3.6 | 10.0 | 7.0 | 21.0 |
| LY0002-5009 | SC-XB4-6 | 6.4 | 5.2 | 3.6 | 10.0 | 7.0 | 21.0 |
| LY0002-5010 | SC-XB4-8 | 8.4 | 5.2 | 3.6 | 13.0 | 7.0 | 24.0 |
| LY0002-5011 | SC-XB6-4 | 4.3 | 6.0 | 4.2 | 10.0 | 9.0 | 23.5 |
| LY0002-5012 | SC-XB6-5 | 5.3 | 6.0 | 4.2 | 10.0 | 9.0 | 23.5 |
| LY0002-5013 | SC-XB6-6 | 6.4 | 6.0 | 4.2 | 10.0 | 9.0 | 26.0 |
| LY0002-5014 | SC-XB6-8 | 8.4 | 6.0 | 4.2 | 12.0 | 9.0 | 26.0 |
| LY0002-5015 | SC-XB6-10 | 10.5 | 6.0 | 4.2 | 16.0 | 9.0 | 34.0 |
| LY0002-5016 | SC-XB10-5 | 5.3 | 7.0 | 5.0 | 12.4 | 9.0 | 27.0 |
| LY0002-5017 | SC-XB10-6 | 6.4 | 7.0 | 5.0 | 12.4 | 9.0 | 27.0 |
| LY0002-5018 | SC-XB10-8 | 8.4 | 7.0 | 5.0 | 12.4 | 9.0 | 28.0 |
| LY0002-5019 | SC-XB10-10 | 10.5 | 7.0 | 5.0 | 18.0 | 9.0 | 34.5 |
| LY0002-5020 | SC-XB10-12 | 13.0 | 7.0 | 5.0 | 18.5 | 9.0 | 39.5 |
| LY0002-5021 | SC-XB16-4 | 4.3 | 7.8 | 5.8 | 12.4 | 12.0 | 31.0 |
| LY0002-5022 | SC-XB16-5 | 5.3 | 7.8 | 5.8 | 12.4 | 12.0 | 31.0 |
| LY0002-5023 | SC-XB16-6 | 6.4 | 7.8 | 5.8 | 12.4 | 12.0 | 31.0 |
| LY0002-5024 | SC-XB16-8 | 8.4 | 7.8 | 5.8 | 12.4 | 12.0 | 31.0 |
| LY0002-5025 | SC-XB16-10 | 10.5 | 7.8 | 5.8 | 16.0 | 12.0 | 34.0 |
| LY0002-5026 | SC-XB16-12 | 13.0 | 7.8 | 5.8 | 19.5 | 12.0 | 42.0 |
| LY0002-5027 | SC-XB25-5 | 5.3 | 9.5 | 7.5 | 14.0 | 12.0 | 32.0 |
| LY0002-5028 | SC-XB25-6 | 6.4 | 9.5 | 7.5 | 14.0 | 12.0 | 32.0 |
| LY0002-5029 | SC-XB25-8 | 8.4 | 9.5 | 7.5 | 18.0 | 12.0 | 34.0 |
| LY0002-5030 | SC-XB25-10 | 10.5 | 9.5 | 7.5 | 17.5 | 12.0 | 37.0 |
| LY0002-5031 | SC-XB25-12 | 13.0 | 9.5 | 7.5 | 20.5 | 12.0 | 45.0 |
| LY0002-5032 | SC-XB35-6 | 6.4 | 11.4 | 8.6 | 16.5 | 15.0 | 38.0 |
| LY0002-5033 | SC-XB35-8 | 8.4 | 11.4 | 8.6 | 16.5 | 15.0 | 38.0 |
| LY0002-5034 | SC-XB35-10 | 10.5 | 11.4 | 8.6 | 17.5 | 15.0 | 41.0 |
| LY0002-5035 | SC-XB35-12 | 13.0 | 11.4 | 8.6 | 18.0 | 15.0 | 47.5 |
| LY0002-5036 | SC-XB50-6 | 6.4 | 12.6 | 9.6 | 18.0 | 16.0 | 43.5 |
| LY0002-5037 | SC-XB50-8 | 8.4 | 12.6 | 9.6 | 18.0 | 16.0 | 44.0 |
| LY0002-5038 | SC-XB50-10 | 10.5 | 12.6 | 9.6 | 18.0 | 16.0 | 44.0 |
| LY0002-5039 | SC-XB50-12 | 13.0 | 12.6 | 9.6 | 18.0 | 16.0 | 44.0 |
| LY0002-5040 | SC-XB50-14 | 15.0 | 12.6 | 9.6 | 25.0 | 16.0 | 55.5 |
| LY0002-5041 | SC-XB50-16 | 17.0 | 12.6 | 9.6 | 26.0 | 16.0 | 60.0 |
| LY0002-5042 | SC-XB70-6 | 6.4 | 15.0 | 12.0 | 21.8 | 18.0 | 50.0 |
| LY0002-5043 | SC-XB70-8 | 8.4 | 15.0 | 12.0 | 21.8 | 18.0 | 50.0 |
| LY0002-5044 | SC-XB70-10 | 10.5 | 15.0 | 12.0 | 21.8 | 18.0 | 50.0 |
| LY0002-5045 | SC-XB70-12 | 13.0 | 15.0 | 12.0 | 21.8 | 18.0 | 50.0 |
| LY0002-5046 | SC-XB70-14 | 15.0 | 15.0 | 12.0 | 21.8 | 18.0 | 59.0 |
| LY0002-5047 | SC-XB70-16 | 17.0 | 15.0 | 12.0 | 26.0 | 18.0 | 63.0 |
| LY0002-5048 | SC-XB95-5 | 5.3 | 17.4 | 13.5 | 25.0 | 20.0 | 55.5 |
| LY0002-5049 | SC-XB95-6 | 6.4 | 17.4 | 13.5 | 25.0 | 20.0 | 55.5 |
| LY0002-5050 | SC-XB95-8 | 8.4 | 17.4 | 13.5 | 25.0 | 20.0 | 55.5 |
| LY0002-5051 | SC-XB95-10 | 10.5 | 17.4 | 13.5 | 25.0 | 20.0 | 55.5 |
| LY0002-5052 | SC-XB95-12 | 13.0 | 17.4 | 13.5 | 25.0 | 20.0 | 55.5 |
| LY0002-5053 | SC-XB95-14 | 15.0 | 17.4 | 13.5 | 25.0 | 20.0 | 65.0 |
| LY0002-5054 | SC-XB95-16 | 17.0 | 17.4 | 13.5 | 27.0 | 20.0 | 69.5 |
| LY0002-5055 | SC-XB95-20 | 21.0 | 17.4 | 13.5 | 29.0 | 20.0 | 77.5 |
| LY0002-5056 | SC-XB120-8 | 8.4 | 19.8 | 15.0 | 28.4 | 22.0 | 60.0 |
| LY0002-5057 | SC-XB120-10 | 10.5 | 19.8 | 15.0 | 28.4 | 22.0 | 60.0 |
| LY0002-5058 | SC-XB120-12 | 13.0 | 19.8 | 15.0 | 28.4 | 22.0 | 60.0 |
| LY0002-5059 | SC-XB120-14 | 15.0 | 19.8 | 15.0 | 28.4 | 22.0 | 64.0 |
| LY0002-5060 | SC-XB120-16 | 17.0 | 19.8 | 15.0 | 28.4 | 22.0 | 64.0 |
| LY0002-5061 | SC-XB150-6 | 6.4 | 21.2 | 16.5 | 30.5 | 26.0 | 69.0 |
| LY0002-5062 | SC-XB150-8 | 8.4 | 21.2 | 16.5 | 30.5 | 26.0 | 69.0 |
| LY0002-5063 | SC-XB150-10 | 10.5 | 21.2 | 16.5 | 30.5 | 26.0 | 69.0 |
| LY0002-5064 | SC-XB150-12 | 13.0 | 21.2 | 16.5 | 30.5 | 26.0 | 69.0 |
| LY0002-5065 | SC-XB150-14 | 15.0 | 21.2 | 16.5 | 30.5 | 26.0 | 69.0 |
| LY0002-5066 | SC-XB150-16 | 17.0 | 21.2 | 16.5 | 30.5 | 26.0 | 69.0 |
| LY0002-5067 | SC-XB150-20 | 21.0 | 21.2 | 16.5 | 30.5 | 26.0 | 69.0 |
| LY0002-5068 | SC-XB185-10 | 10.5 | 23.5 | 18.5 | 34.0 | 32.0 | 78.0 |
| LY0002-5069 | SC-XB185-12 | 13.0 | 23.5 | 18.5 | 34.0 | 32.0 | 78.0 |
| LY0002-5070 | SC-XB185-14 | 15.0 | 23.5 | 18.5 | 34.0 | 32.0 | 78.0 |
| LY0002-5071 | SC-XB185-16 | 17.0 | 23.5 | 18.5 | 34.0 | 32.0 | 78.0 |
| LY0002-5072 | SC-XB185-20 | 21.0 | 23.5 | 18.5 | 34.0 | 32.0 | 78.0 |
| LY0002-5073 | SC-XB240-10 | 10.5 | 26.5 | 21.5 | 38.5 | 38.0 | 92.0 |
| LY0002-5074 | SC-XB240-12 | 13.0 | 26.5 | 21.5 | 38.5 | 38.0 | 92.0 |
| LY0002-5075 | SC-XB240-14 | 15.0 | 26.5 | 21.5 | 38.5 | 38.0 | 92.0 |
| LY0002-5076 | SC-XB240-16 | 17.0 | 26.5 | 21.5 | 38.5 | 38.0 | 92.0 |
| LY0002-5077 | SC-XB240-20 | 21.0 | 26.5 | 21.5 | 38.5 | 38.0 | 92.0 |
| LY0002-5078 | SC-XB300-12 | 13.0 | 30.0 | 23.5 | 43.0 | 42.0 | 101.0 |
| LY0002-5079 | SC-XB300-14 | 15.0 | 30.0 | 23.5 | 43.0 | 42.0 | 101.0 |
| LY0002-5080 | SC-XB300-16 | 17.0 | 30.0 | 23.5 | 43.0 | 42.0 | 101.0 |
| LY0002-5081 | SC-XB300-18 | 19.0 | 30.0 | 23.5 | 43.0 | 42.0 | 101.0 |
| LY0002-5082 | SC-XB300-20 | 21.0 | 30.0 | 23.5 | 43.0 | 42.0 | 101.0 |
| LY0002-5083 | SC-XB400-12 | 13.0 | 36.5 | 28.5 | 52.0 | 44.0 | 114.0 |
| LY0002-5084 | SC-XB400-16 | 17.0 | 36.5 | 28.5 | 52.0 | 44.0 | 114.0 |
| LY0002-5085 | SC-XB400-18 | 19.0 | 36.5 | 28.5 | 52.0 | 44.0 | 114.0 |
| LY0002-5086 | SC-XB400-20 | 21.0 | 36.5 | 28.5 | 52.0 | 44.0 | 114.0 |
| LY0002-5087 | SC-XB500-16 | 17.0 | 39.0 | 30.5 | 56.0 | 48.0 | 124.0 |
| LY0002-5088 | SC-XB500-18 | 19.0 | 39.0 | 30.5 | 56.0 | 48.0 | 124.0 |
| LY0002-5089 | SC-XB500-20 | 21.0 | 39.0 | 30.5 | 56.0 | 48.0 | 124.0 |
| LY0002-5090 | SC-XB600-20 | 21.0 | 55.0 | 45.0 | 65.0 | 56.0 | 144.0 |
Application: terminals are parts used to realize electrical connection, It’s classified into the category of the connector in industry. Terminals are applied for the convenience of wire connection, it is actually piece of metal sealed inside the insulated plastic, with holes at both ends and cables can be inserted, and screws are used to tighten or loosen. For example, two cables, sometimes need to connect, sometimes need to disconnect, and we can use terminals to connect them, and disconnect at any time, without welding them or intertwined, which is very convenient.
SC-XB COPPER TUBE TERMINALS LY0002-5001/5090
