⊙material：copper
⊙content：Copper above 99.9%
⊙plating：Tin
| PART NO 2015-2018 |

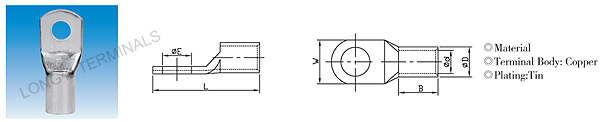

ITEM NO | DIMENSIONS | |||||
| øE | ΦD | Φd | W | B | L | ||
| LY0002-3001 | B-SC1.5-4 | 4.2 | 3.4 | 1.8 | 8.0 | 5.0 | 16.0 |
| LY0002-3002 | B-SC1.5-5 | 5.2 | 3.4 | 1.8 | 10.0 | 5.0 | 17.0 |
| LY0002-3003 | B-SC1.5-6 | 6.5 | 3.4 | 1.8 | 10.0 | 5.0 | 18.0 |
| LY0002-3004 | B-SC2.5-4 | 4.2 | 3.7 | 2.4 | 8.0 | 7.0 | 18.0 |
| LY0002-3005 | B-SC2.5-5 | 5.2 | 3.7 | 2.4 | 10.0 | 7.0 | 20.0 |
| LY0002-3006 | B-SC2.5-6 | 6.5 | 3.7 | 2.4 | 10.0 | 7.0 | 20.0 |
| LY0002-3007 | B-SC2.5-8 | 8.4 | 3.7 | 2.4 | 12.5 | 7.0 | 23.0 |
| LY0002-3008 | B-SC4-4 | 4.2 | 4.5 | 3.1 | 10.0 | 7.0 | 20.0 |
| LY0002-3009 | B-SC4-5 | 5.2 | 4.5 | 3.1 | 10.0 | 7.0 | 20.0 |
| LY0002-3010 | B-SC4-6 | 6.5 | 4.5 | 3.1 | 10.0 | 7.0 | 20.0 |
| LY0002-3011 | B-SC4-8 | 8.4 | 4.5 | 3.1 | 12.5 | 7.0 | 23.0 |
| LY0002-3012 | B-SC6-4 | 4.2 | 5.2 | 3.8 | 10.0 | 9.0 | 24.0 |
| LY0002-3013 | B-SC6-5 | 5.2 | 5.2 | 3.8 | 10.0 | 9.0 | 24.0 |
| LY0002-3014 | B-SC6-6 | 6.5 | 5.2 | 3.8 | 12.0 | 9.0 | 24.0 |
| LY0002-3015 | B-SC6-8 | 8.4 | 5.2 | 3.8 | 12.5 | 9.0 | 26.0 |
| LY0002-3016 | B-SC6-10 | 10.5 | 5.9 | 4.0 | 15.0 | 9.0 | 28.0 |
| LY0002-3017 | B-SC10-5 | 5.2 | 5.9 | 4.5 | 12.0 | 9.0 | 25.0 |
| LY0002-3018 | B-SC10-6 | 6.5 | 5.9 | 4.5 | 12.0 | 9.0 | 25.0 |
| LY0002-3019 | B-SC10-8 | 8.4 | 5.9 | 4.5 | 12.5 | 9.0 | 27.0 |
| LY0002-3020 | B-SC10-10 | 10.5 | 5.9 | 4.5 | 15.0 | 9.0 | 29.0 |
| LY0002-3021 | B-SC10-12 | 13.0 | 5.9 | 4.5 | 17.0 | 9.0 | 31.0 |
| LY0002-3022 | B-SC16-5 | 5.2 | 6.8 | 5.4 | 12.0 | 12.0 | 30.0 |
| LY0002-3023 | B-SC16-6 | 6.5 | 6.8 | 5.4 | 12.0 | 12.0 | 30.0 |
| LY0002-3024 | B-SC16-8 | 8.4 | 6.8 | 5.4 | 12.5 | 12.0 | 30.0 |
| LY0002-3025 | B-SC16-10 | 10.5 | 6.8 | 5.4 | 16.0 | 12.0 | 33.0 |
| LY0002-3026 | B-SC16-12 | 13.0 | 6.8 | 5.4 | 17.0 | 12.0 | 35.0 |
| LY0002-3027 | B-SC25-5 | 5.2 | 8.4 | 6.8 | 13.0 | 12.0 | 33.0 |
| LY0002-3028 | B-SC25-6 | 6.5 | 8.4 | 6.8 | 13.0 | 12.0 | 33.0 |
| LY0002-3029 | B-SC25-8 | 8.4 | 8.4 | 6.8 | 15.0 | 12.0 | 33.0 |
| LY0002-3030 | B-SC25-10 | 10.5 | 8.4 | 6.8 | 18.0 | 12.0 | 34.0 |
| LY0002-3031 | B-SC25-12 | 13.0 | 8.4 | 6.8 | 18.0 | 12.0 | 35.0 |
| LY0002-3032 | B-SC25-14 | 15.0 | 8.4 | 6.8 | 20.0 | 12.0 | 38.0 |
| LY0002-3033 | B-SC35-5 | 5.2 | 10.2 | 8.2 | 16.0 | 14.0 | 38.0 |
| LY0002-3034 | B-SC35-6 | 6.5 | 10.2 | 8.2 | 16.0 | 14.0 | 38.0 |
| LY0002-3035 | B-SC35-8 | 8.4 | 10.2 | 8.2 | 16.0 | 14.0 | 38.0 |
| LY0002-3036 | B-SC35-10 | 10.5 | 10.2 | 8.2 | 18.0 | 14.0 | 39.0 |
| LY0002-3037 | B-SC35-12 | 13.0 | 10.2 | 8.2 | 19.0 | 14.0 | 40.5 |
| LY0002-3038 | B-SC35-14 | 15.0 | 10.2 | 8.2 | 20.0 | 14.0 | 42.0 |
| LY0002-3039 | B-SC50-6 | 6.5 | 11.9 | 9.5 | 17.5 | 16.0 | 45.0 |
| LY0002-3040 | B-SC50-8 | 8.4 | 11.9 | 9.5 | 17.5 | 16.0 | 45.0 |
| LY0002-3041 | B-SC50-10 | 10.5 | 11.9 | 9.5 | 17.5 | 16.0 | 45.0 |
| LY0002-3042 | B-SC50-12 | 13.0 | 11.9 | 9.5 | 20.0 | 16.0 | 45.0 |
| LY0002-3043 | B-SC50-14 | 15.0 | 11.9 | 9.5 | 22.0 | 16.0 | 46.0 |
| LY0002-3044 | B-SC50-16 | 17.0 | 11.9 | 9.5 | 24.0 | 16.0 | 47.0 |
| LY0002-3045 | B-SC70-8 | 8.4 | 14.0 | 11.2 | 20.5 | 20.0 | 52.0 |
| LY0002-3046 | B-SC70-10 | 10.5 | 14.0 | 11.2 | 20.5 | 20.0 | 52.0 |
| LY0002-3047 | B-SC70-12 | 13.0 | 14.0 | 11.2 | 20.5 | 20.0 | 52.0 |
| LY0002-3048 | B-SC70-14 | 15.0 | 14.0 | 11.2 | 20.5 | 20.0 | 52.0 |
| LY0002-3049 | B-SC70-16 | 17.0 | 14.1 | 11.2 | 25.0 | 20.0 | 53.0 |
| LY0002-3050 | B-SC95-8 | 8.4 | 16.7 | 13.5 | 24.5 | 23.0 | 58.0 |
| LY0002-3051 | B-SC95-10 | 10.5 | 16.7 | 13.5 | 24.5 | 23.0 | 58.0 |
| LY0002-3052 | B-SC95-12 | 13.0 | 16.7 | 13.5 | 24.5 | 23.0 | 58.0 |
| LY0002-3053 | B-SC95-14 | 15.0 | 16.7 | 13.5 | 24.5 | 23.0 | 58.0 |
| LY0002-3054 | B-SC95-16 | 17.0 | 16.7 | 13.5 | 24.5 | 23.0 | 58.0 |
| LY0002-3055 | B-SC120-8 | 8.4 | 18.6 | 15.0 | 27.0 | 22.0 | 63.0 |
| LY0002-3056 | B-SC120-10 | 10.5 | 18.6 | 15.0 | 27.0 | 22.0 | 63.0 |
| LY0002-3057 | B-SC120-12 | 13.0 | 18.6 | 15.0 | 27.0 | 22.0 | 63.0 |
| LY0002-3058 | B-SC120-14 | 15.0 | 18.6 | 15.0 | 27.0 | 22.0 | 63.0 |
| LY0002-3059 | B-SC120-16 | 17.0 | 18.6 | 15.0 | 27.0 | 22.0 | 63.0 |
| LY0002-3060 | B-SC120-20 | 21.0 | 18.6 | 15.0 | 27.0 | 22.0 | 63.0 |
| LY0002-3061 | B-SC150-8 | 8.4 | 20.4 | 16.5 | 30.0 | 26.0 | 70.0 |
| LY0002-3062 | B-SC150-10 | 10.5 | 20.4 | 16.5 | 30.0 | 26.0 | 70.0 |
| LY0002-3063 | B-SC150-12 | 13.0 | 20.4 | 16.5 | 30.0 | 26.0 | 70.0 |
| LY0002-3064 | B-SC150-14 | 15.0 | 20.4 | 16.5 | 30.0 | 26.0 | 70.0 |
| LY0002-3065 | B-SC150-16 | 17.0 | 20.4 | 16.5 | 30.0 | 26.0 | 70.0 |
| LY0002-3066 | B-SC150-20 | 21.0 | 20.4 | 16.5 | 30.0 | 26.0 | 70.0 |
| LY0002-3067 | B-SC185-10 | 10.5 | 22.6 | 18.5 | 33.0 | 32.0 | 75.0 |
| LY0002-3068 | B-SC185-12 | 13.0 | 22.6 | 18.5 | 33.0 | 32.0 | 75.0 |
| LY0002-3069 | B-SC185-14 | 15.0 | 22.6 | 18.5 | 33.0 | 32.0 | 75.0 |
| LY0002-3070 | B-SC185-16 | 17.0 | 22.6 | 18.5 | 33.0 | 32.0 | 75.0 |
| LY0002-3071 | B-SC185-20 | 21.0 | 22.6 | 18.5 | 33.0 | 32.0 | 75.0 |
| LY0002-3072 | B-SC240-10 | 10.5 | 25.5 | 21.0 | 37.2 | 38.0 | 90.0 |
| LY0002-3073 | B-SC240-12 | 13.0 | 25.5 | 21.0 | 37.2 | 38.0 | 90.0 |
| LY0002-3074 | B-SC240-14 | 15.0 | 25.5 | 21.0 | 37.2 | 38.0 | 90.0 |
| LY0002-3075 | B-SC240-16 | 17.0 | 25.5 | 21.0 | 37.2 | 38.0 | 90.0 |
| LY0002-3076 | B-SC240-20 | 21.0 | 25.5 | 21.0 | 37.2 | 38.0 | 90.0 |
| LY0002-3077 | B-SC300-10 | 10.5 | 28.8 | 23.5 | 42.0 | 42.0 | 98.0 |
| LY0002-3078 | B-SC300-12 | 13.0 | 28.8 | 23.5 | 42.0 | 42.0 | 98.0 |
| LY0002-3079 | B-SC300-14 | 15.0 | 28.8 | 23.5 | 42.0 | 42.0 | 98.0 |
| LY0002-3080 | B-SC300-16 | 17.0 | 28.8 | 23.5 | 42.0 | 42.0 | 98.0 |
| LY0002-3081 | B-SC300-20 | 21.0 | 28.8 | 23.5 | 42.0 | 42.0 | 98.0 |
| LY0002-3082 | B-SC400-10 | 10.5 | 35.1 | 28.5 | 51.0 | 44.0 | 110.0 |
| LY0002-3083 | B-SC400-12 | 13.0 | 35.1 | 28.5 | 51.0 | 44.0 | 110.0 |
| LY0002-3084 | B-SC400-14 | 15.0 | 35.1 | 28.5 | 51.0 | 44.0 | 110.0 |
| LY0002-3085 | B-SC400-16 | 17.0 | 35.1 | 28.5 | 51.0 | 44.0 | 110.0 |
| LY0002-3086 | B-SC400-20 | 21.0 | 35.1 | 28.5 | 51.0 | 44.0 | 110.0 |
| LY0002-3087 | B-SC500-10 | 10.5 | 37.4 | 30.0 | 54.5 | 48.0 | 120.0 |
| LY0002-3088 | B-SC500-12 | 13.0 | 37.4 | 30.0 | 54.5 | 48.0 | 120.0 |
| LY0002-3089 | B-SC500-14 | 15.0 | 37.4 | 30.0 | 54.5 | 48.0 | 120.0 |
| LY0002-3090 | B-SC500-16 | 17.0 | 37.4 | 30.0 | 54.5 | 48.0 | 120.0 |
| LY0002-3091 | B-SC500-20 | 21.0 | 37.4 | 30.0 | 54.5 | 48.0 | 120.0 |
| LY0002-3092 | B-SC630-10 | 10.5 | 43.2 | 35.0 | 63.0 | 56.0 | 140.0 |
| LY0002-3093 | B-SC630-12 | 13.0 | 43.2 | 35.0 | 63.0 | 56.0 | 140.0 |
| LY0002-3094 | B-SC630-14 | 15.0 | 43.2 | 35.0 | 63.0 | 56.0 | 140.0 |
| LY0002-3095 | B-SC630-16 | 17.0 | 43.2 | 35.0 | 63.0 | 56.0 | 140.0 |
| LY0002-3096 | B-SC630-20 | 21.0 | 43.2 | 35.0 | 63.0 | 56.0 | 140.0 |
Application: terminals are parts used to realize electrical connection, It’s classified into the category of the connector in industry. Terminals are applied for the convenience of wire connection, it is actually piece of metal sealed inside the insulated plastic, with holes at both ends and cables can be inserted, and screws are used to tighten or loosen. For example, two cables, sometimes need to connect, sometimes need to disconnect, and we can use terminals to connect them, and disconnect at any time, without welding them or intertwined, which is very convenient.
B-SC COPPER TUBE TERMINALS LY0002-3001/3096
